Automatic 6 Head Rotary Capping Machine

Automatic 6 Head Rotary Capping Machine

This Automatic 6 Head Rotary Capping Machine is used for closing plastics screw caps, especially for the caps which with lock ring. It is widely used in industries like foodstuff, pharmacy, daily chemical, cosmetic, fertilizer etc.

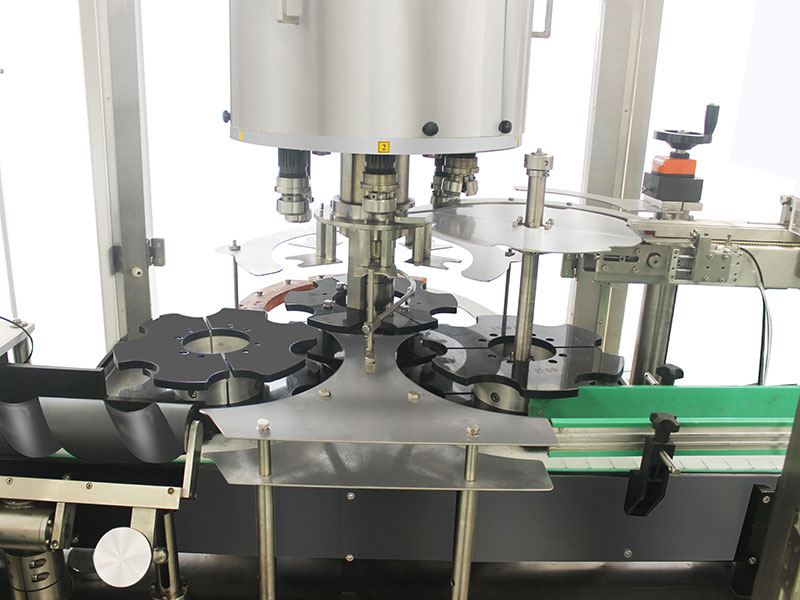

PLC control system, rotary type structure, the machine is with function of automatic cap feeding ,loading and closing.

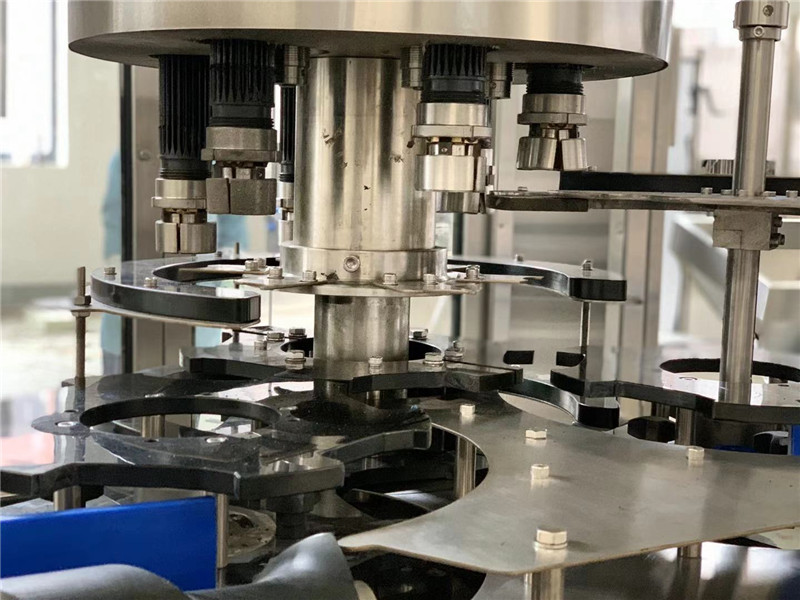

Machine come with 6 capping heads, pneumatic chuck capping head with clutch ,it won’t damage the caps, and use belt to press bottle which also make no damage of the bottle.
High capping speed and capping accuracy.

Brief Introduction

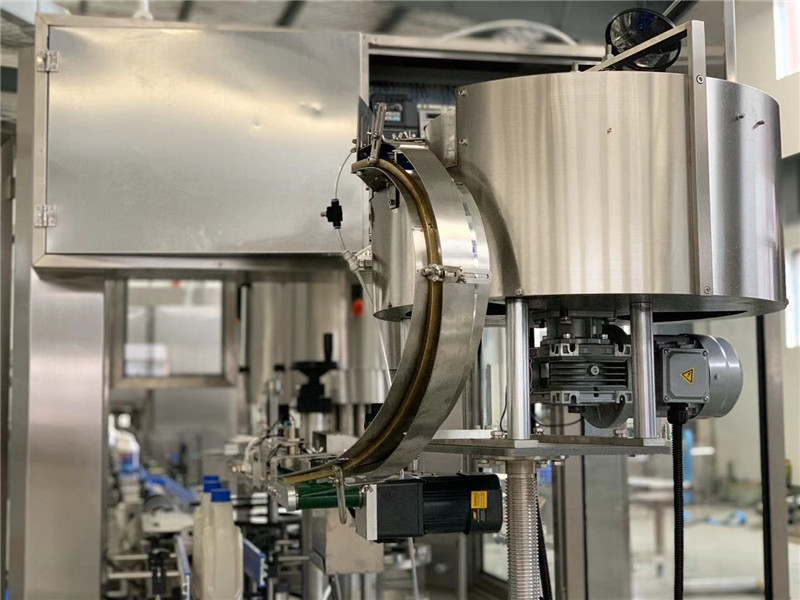

1. This automatic rotary capping machine is protective automatic capping machine and control by PLC program, it can automatically arrange lid, taking lid and sending lid, it will grasp lid then capping.

2. The machine is a multifunctional lid-revolver not only revolving lid but also pressing lid. Especially for the lid which fits with the bottle mouth too tight and has interior anti-lock ring.

3. The cap can automatically slip after pressing tightened to ensure do not damage the cap, capping speed fast, high pass rate.

Technical Parameter

No. Item Technical Data
1 Capacity 3000-4000BPH for 1L bottles
2 Cap’s Diameter φ20-φ55mm
3 Filling Head 6
4 Power 2KW
5 Voltage 220V 50HZ
6 Weight 900KG
7 Dimension 2000*1030*2300MM

Main Configuration

No. Item Brand Country
1 Touch Screen WEINVIEW Taiwan
2 PLC DELTA Taiwan
3 FREQUENCY TRANSFORMER DELTA Taiwan
4 ELECTROMAGNETIC VALVE AIRTAC Taiwan
5 Reducer motor ZIGUANG China

Spare parts list

NO. Item Quantity
1 Claw seat hoop spring 6 pieces
2 Claw seat pin 6 piece
3 Lifting spring (up, down) 8 pieces
4 Friction tablets (Bakelite plate) 8 piece
5 Tools kit 1 set
6 Tools box 1 piece
7 Instruction 1 piece
