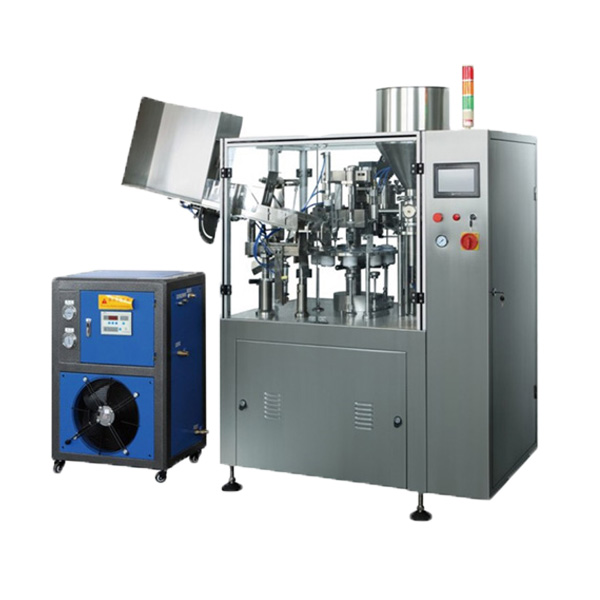

Tube Filling And Sealing Machine

Tube Filling And Sealing Machine

VKPAK automatic high-speed tube filler sealer is suitable for filling and sealing all kinds of semi-viscous and viscous products into plastic and compound tubes, as well as the metal tubes. It's suitable for pharmaceutical, chemical, cosmetic, and food products.

Brief Introduction:

VKPAK automatic high-speed tube filler sealer is suitable for filling and sealing all kinds of semi-viscous and viscous products into plastic and compound tubes, as well as the metal tubes. It's suitable for pharmaceutical, chemical, cosmetic, and food products.

Compact design and auto tube feed. Driving part fully-closed.
Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.
Tube washing and feeding conducted pneumatically, accurate and reliable.

Features

  • Works for plastic and compound tubes, or metal tubes.
  • Tube feeding, marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system. Tube washing and feeding conducted pneumatically, accurate and reliable.
  • Material contact parts 316L stainless steel.
  • Pneumatic shut-off nozzle, no drippings after filling.
  • No tube no filling features.
  • Overload protection.
  • A 40L 316L stainless steel hopper is included dynamically built to meet the cGMP standard.
  • Material Feeding Pump, Hopper stirrer, Hopper heater, and Tube Feeding machine are optional.
  • Run for both round and oval tubes, suitable for common sealing end or special space sealing end.
  • High running speed up to 80 tubes per minute.

Main Parameter:

Model VK-100 VK-60
Filling volume 5 -250ml.  5 -250ml or 50 - 500ml.
Production capacity Up to 80 tubes per minute. Up to 40 tubes per minute.
Filling accuracy ≤±1%. ≤±1%
Tube diameter 10 - 50mm. 10 - 50mm or 20 - 60mm.
Tube height Max. 210mm. Max. 210mm or Max. 250mm.
Hopper volume  40L. 40L.
Compressed air 0.5 - 0.7Mpa.  0.4 - 0.6Mpa.
Voltage AC208-415V 3phase 50/60Hz. AC208-415V 3phase 50/60Hz.
 Power  9kw. 4.5kw.
Dimensions L2400*W1185*H2035mm.  L1900*W1000*H1900mm.
 Weight 1600kg. 900kg.
