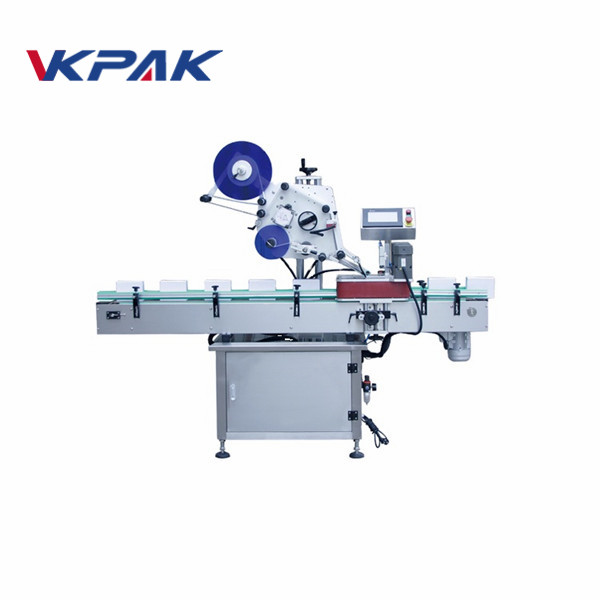

Automatic Pouches Box Card Labeling Machine

Automatic Pouches Box Card Labeling Machine

Application:

*For all kinds of flat/slightly arc surface labeling, such as cards,pouches,unfold paper box, etc.

*Widely used in food, cosmetic, chemical, pharmaceutical and other industries.It can work alone or connect to production line.

*Date printer can be added to print production date,batch lot and expiry date while labeling.

*Support customization.

labeling speed20-150pcs/min
height of object30-200mm
thickness of object20-200mm
height of label15-110mm
length of label20-300mm
label roller inside76mm
label roller outside350mm
accuracy±0.8mm
power supply220V /50/60HZ/0.75KW
gas consumption of printer5kg/cm^2(if add coding machine)
size of labeling machine1600*550*1600
weight of labeling machine150kg

Top Automatic Labeling Machine is suitable for a wide range of top labeling needs. It utilizes PLC system combined with a touch screen, an in-built digital counter and a self-diagnostic LED on the panel. This synchronizes control on the entire machine structure, which allows stable operation regardless of production speed.

The Top Automatic Labeling Machine is controlled by a Japanese micro process controller, incorporated into the micro stepper motors, allowing efficient, accurate, and precise labeling performance, providing the finest image of the product.

The Series Labeler is the most economical and efficient in terms of capabilities. The aluminum and stainless steel design make it portable and durable. The user-friendly operating system and microprocessor controls add many features that can boost production efficiency, with a maximum product width of 180mm.

Accurate Labeling

The Top Automatic Labeling Machine is controlled by a Japanese micro process controller, incorporated into the micro stepper motors, allowing efficient, accurate, and precise labeling performance, providing the finest image of the product.

User Friendly Adjustment And Control

The user friendly hand wheel mechanism allows for easy and efficient adjustments of labeling position and other corresponding structures. The touch panel control all the parameters without complex adjustments needed. Both regular staff and temporary personnel will be able to operate the machine with short training, maximizing flexibility in arrangement of human labor force.

Monitoring and Management Function

Labeling quantity, pre-count function, and missing label detection are ensures production accuracy, helping both management and production. Together, they form a full time QC engineer watching over your production efficiency and accuracy.

Frame Assembly

Main labeling structure is made from S304 stainless steel and hardened anodized aluminum. Maintenance is easy and efficient.

Control Interface

  • Control system of labeler utilizes a large touch screen panel certified by CE and UL regulations for efficient and effective monitoring of the labeling result.
  • Control box and external connection of labeler pass CE Marking and UL safety regulation with IP65 level to ensure control system life time and stability.

Applicator Assembly



  • Utilizes Panasonic’s micro process controller PLC, ensuring a fast a steady performance.
  • Label dispensing is driven by stepper motor in order to maintain labeling accuracy at high speed with high efficiency while keeping power consumption low. (For high speed demands, servo motor can also be used instead)
    Famous branded fiber optics and infrared sensor utilized for precise detection and signal triggering without interference.
  • Standard applicator widths of 180mm and 250ml are also optional. Applicator is ready for future hot foil printer assembly attachment.
  • Labeler comes equipped with adjustable hand wheel assembly, providing efficient and effective adjustments of label positioning for maximum production output.

Machine Component Advantages

  • 9.Maintenance is easy and efficient.
  • Delicate VFD controller ensure speed stability and +/-0.5% inaccuracy rate.
  • Guide rail portion is made with high quality aluminum covered with hard-wearing industrial plastic to ensure accurate labeling and product protection, keeping the customer’s product attractive and in perfect condition.
  • Labeler base is made of stainless steel to ensure full anti-rusting. This design ensures the machine and production space hygiene are maintained which is normally neglected by other manufacturers.
  • Wheels keep the machine portable, convenient when shifting to different production lines. This supportive mobile strength increases the value of your investment.
