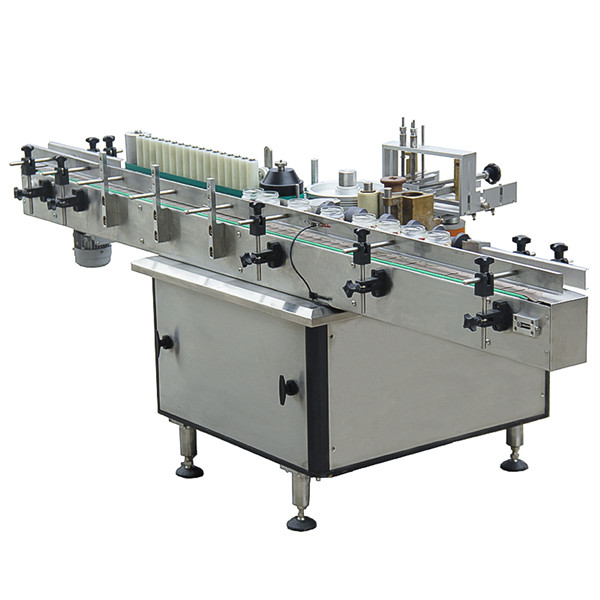

Automatic Wet Glue Paste Paper Labeling Machine

This wet glue labeling machine is suitable for paper label. It widely used for all kinds of round bottles, jars, cans etc. Both glass bottles and plastic bottle would be fine.

1. Screw bottle feeding, bottle moving is steady.
2. Label box can be adjusted to satisfy different labeling request.
3. The size of label box can be changed according to different label size. It is convenient and easy.
4. The machine is equipped with glue pump, the glue can be used circularly. The flowing of glue also can be controlled to satisfy different labeling request.
5. Paper label can save much cost than sticker label.

Model	Bottle Glue Labeling Machine
DRIVE	Shift motor driven
BOTTLE DIAMETER	Ф55-110mm
BOTTLE HEIGHT	60—450mm
LABELING SPEED	50-120pcs/min
LABELSIZE	Width:20-220mm Length:80-370mm
MACHINE SIZE	2400*824*1100mm
PRECISION	±1mm
Input Power	AC 220V/380V 50/60HZ 750W

1. It applies to widely Realms in Agrochemical, pharmaceutical, Cosmetic and Food Industries.
2. If no bottle in the seat, the machine will stop till bottle comes to place
3. It is applies to GMP standard requirements.
4. Production Capacity: 0-22Meters/Minute

Major Characteristics:

This machine applies to widely Realms Such As Agrochemical, pharmaceutical, Cosmetic, Food Industry, special fine chemical and Daily Chemical. Etc. It is suitable for labeling Circular bottles. If no bottle in the seat, the machine will stop till bottle comes to place. The type of machine has many advantages like high speed labeling, low malfunction rate. If you want to change the bottle size (bigger, smaller), you only need to change some small components, such as gasket. The machine is made of high-quality stainless steel; its surface has been polished. It also is applies to GMP standard requirements.

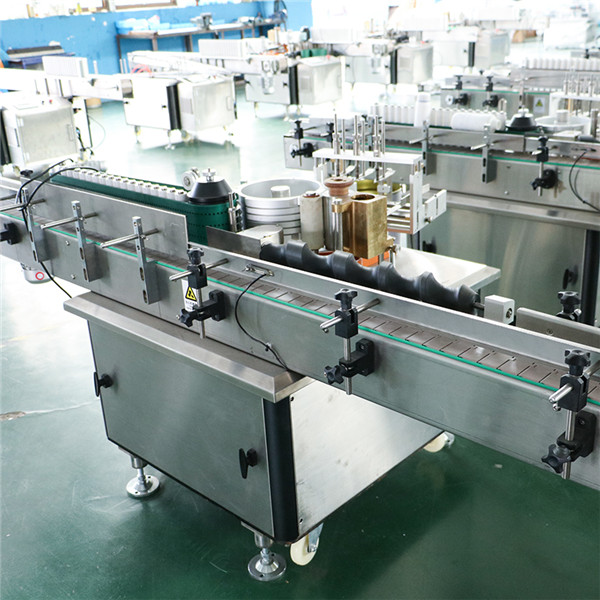

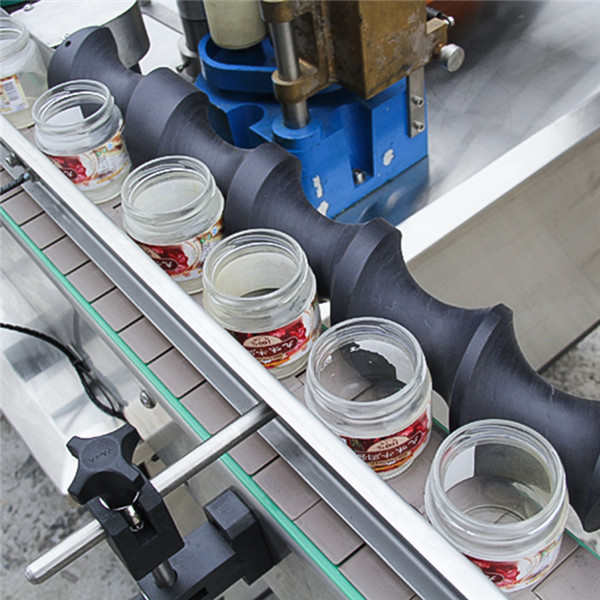

The round container is transferred on the moving conveyer from the in built UNSCRAMBLER and positioned accurately by Feed-worm at the labeling point. The rotating glue cylinder receives cold glue from the glue pot which transferred on the glue rubber roller. Finally even and thin film of glue is transferred to the gluing pad.

The round container at the feed worm pushes the Micro Switch, which results in the oscillation of the label box. The rotating gluing pad picks-up one label from the oscillating label box

The pick-up cylinder receives this label with the help of vacuum. The round container at the labeling point is now wrapped around with the glued label, finally the moving container passes through a rubber pressing belt which ensures neat and perfect fixing of label.

Our range of Cold Glue labellers offer multiple solutions for various labeling requirements. These fast, reliable and cost effective machines are suitable for cans, glass, PET, and plastic containers such as bottles, flasks, containers of cylindrical, square, rectangular and irregular bottle shapes. Also, the cold glue process is the best choice for decorative labels and for keeping costs down.

The bottles are positioned by the infeed worm for wrap-around operation at the labelling point, the rotating glue cylinder receives cold glue from the glue tank, which gets transferred onto the Glue Rubber Roller.

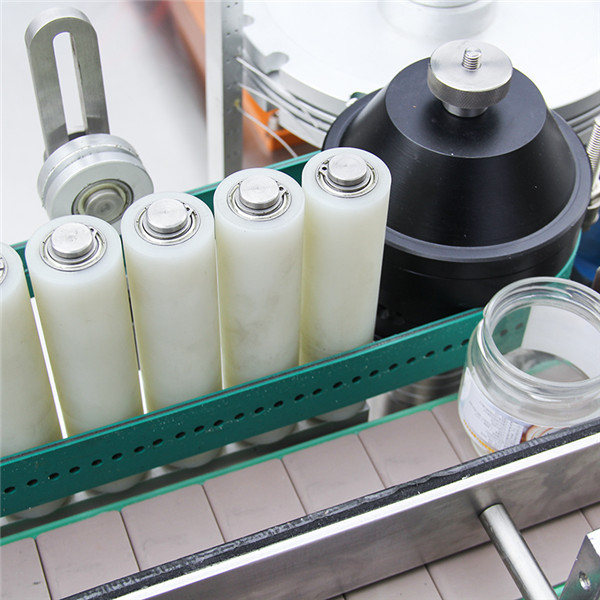

Finally a thin film of glue is transferred to the gluing pad. The bottle moves onto the conveyor with the help of a worm, and the glued label from the pick-up cylinder is wrapped around the container via strip belts. Then the labeled bottle moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect application of the label.
