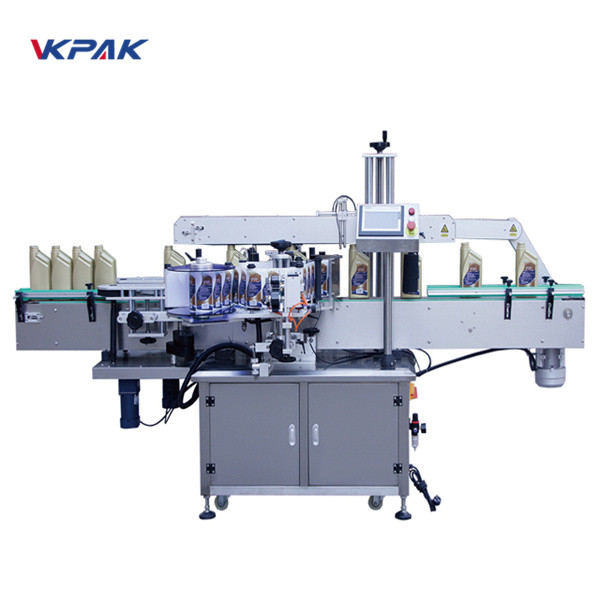

Automatic Front&Back Sides Labeling Machine

Automatic Front&Back Sides Labeling Machine
VKPAK design and build a wide variety of Pressure Sensitive and shrink sleeve product labeling system. Whatever your needs, we focuses on labeling solutions for all types and shapes of packages.

Brief Introduction:

VKPAK design and build a wide variety of Pressure Sensitive and shrink sleeve product labeling system. Whatever your needs, we focuses on labeling solutions for all types and shapes of packages. VKPAK labeler features PLC control and color touch screen operator interface. This provided ease of operation, electronic synchronization of the labeling process and storage of up to 50 products. Ideal for packaging lines requiring frequent changeovers.

If you require labeling machines for your production process, we can find a simple & proper solution to suit your specific application.

Control system: SIEMENS PLC control system, with stable operation and extremely low failure rate;

Operation system: SIEMENS touch screen, directly visual interface and easy operation, Chinese and English language change conveniently, also with help function and fault display function;

Check system: Use German LEUZE check label sensor, automatic check labeling station, stable and convenient don’t have much higher requirement with worker;

Send label system: use SIEMENS high-power servo control system, stable and high speed;

Parameter SAVE: can save 30 groups labeling parameters, when change bottles, don’t need reset parameters, just adjust the machine part is ok.

Alarm function: label spill, label broken or other malfunction during working,machine will alarm and stop working.

Machine Material: Whole machine and spare parts use material S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust;

Labeling way: Servo system;

Low voltage circuit all use German Schneider brand.

Driving ModeServo motor
Yield(pcs/min)20-180( depends on bottle and label sizes )
Operating directionLeft or Right
Conveyor Speed(m/min)≤40
Labeling Accuracy±1.0 mm
Label roll inner diameter76 mm
Label roll outer diameter350 mm(max)
The suitable size of labelStandard size: H: 15-180 mm L: 15-300 mm
(Other size can customized )
The suitable size of bottlesCan customized
Printer device use air5kg/cm 2
Conveyor height950±50mm (Height can customized)
Machine size3000(L) l800(W) 1800(H)mm
Voltage (In China)
AC220V 50/60HZ Single phase
(Can customized )


PLC control systemSIEMENS
Labeling engine Servo motorAmerican AB
Labeling engine DriveAmerican AB
photoelectric sensor
(check bottle)
Photoelectric sensor (Check opaque label)German Leuze
Photoelectric sensor (Check opaque and transparent label)German Leuze
Main transport motorSwitzerlandABB
Press bottle motorSIEMENS
Press bottle driverSIEMENS
Separate bottle MotorGerman JSCC

A front and back labeling machine applies labels to the sides of products such as ovals and rectangular products.

With the addition of options it is also possible to use a bottle label printing machine for 2, 3, and 4 panel wrap applications (at a sacrifice of speed capabilities). For instance a front and back labeling machine that might otherwise run up to 180 bottles per minute for straight front and back labeling would only be able run in the 40 - 60 bottle per minute range. This is because in order to feed the label across the conveyor between bottles plus time for the special tooling to work requires much more product separation.

It is also important to consider whether an alignment system is required to square up the product. All ovals will require an alignment system as well as any irregular product. This can be accomplished in many different ways for different speed requirements. In most cases our standard aligners will do an excellent job, but there are products that may require feed screws or walking beam aligners. When you are purchasing a bottle label printing machine, it is very important to submit samples so that we can review any special handling.

Our experts can help you select the right front and back labeling machine for your application at the right price.
