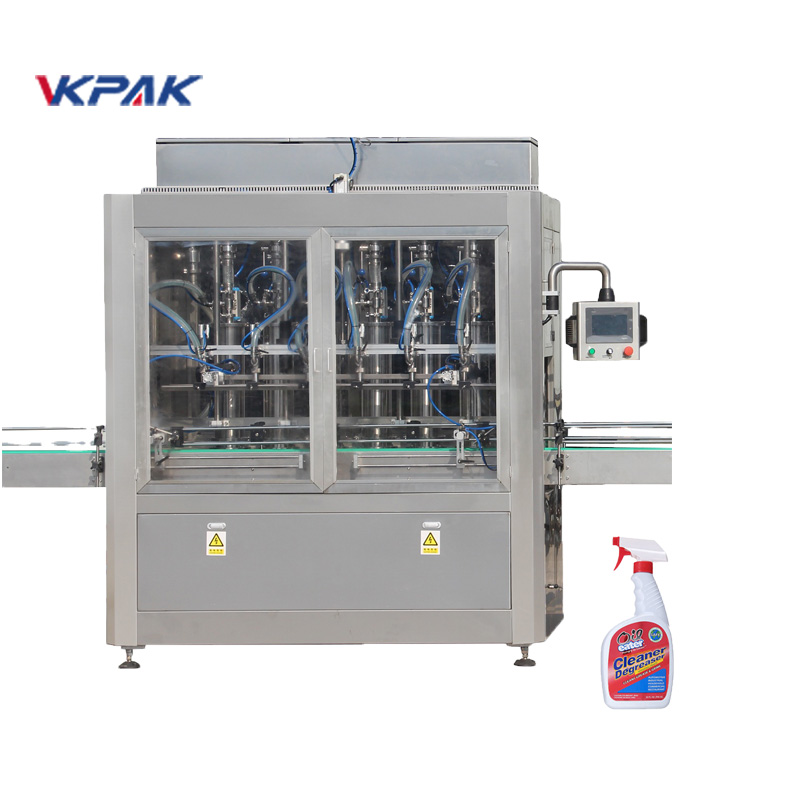

Automatic Hand Sanitizer Plastic Spray Bottle Filling Equipment

Automatic Hand Sanitizer Plastic Spray Bottle Filling Equipment

Quick Details

Type: Filling Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, cosmetics plant
After Warranty Service: Video technical support
Condition: New
Application: Chemical, Beverage, MEDICAL, Pharmaceutical, cosmetics plant
Packaging Type: CANS, Bottles, Barrel, Stand-up Pouch
Packaging Material: plastic, metal, Glass
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 110V/220V/380V
Dimension(L*W*H): 2000*1200*2100mm
Weight: 500-700kgs
Warranty: 1 Year
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Overseas service center available
Key Selling Points: High-accuracy
Machinery Capacity: 4000BPH, 8000BPH, 6000BPH, 2000BPH, 1000BPH
Filling Material: Beer, Milk, Water, Oil, Juice, paste
Filling Accuracy: ±1%
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC, Gear, Gearbox

Automatic Hand Sanitizer Plastic Spray Bottle Filling Equipment

How It Works:
The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper.

Application:
This type of piston filler is best suited for viscous products that are paste, semi paste, or chunky with large particlates. These piston fillers are built to meet food grade standards and can also handle various chemical applications.

Examples:
Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.

Automatic Hand Sanitizer Plastic Spray Bottle Filling Equipment

Advantages:
This lower cost conventional technology is easy to understand for most users. Fast fill rates are achievable with fairly thick products. Warning: this technology is nearly obsolete with the advent of servo positive displacement fillers.

Name and model Computer piston filling machine
Max filling speed filling 200ml, 1500~2200pcs/hour, speed will be different when bottle shape and neck size and the filling material forming and other physical property
Applicable bottle diameter size Φ20 ≤D≤Φ100mm
Applicable bottle height size 30≤H≤300 mm
Filling accuracy ±1%
Filling dose 100~1000ml
Voltage AC220V, single phase, 50/60HZ
Power 1.0KW
Working pressure 0.6MP
Air consumption 1200L one hour
Net weight 500/700 Kgs
Machine size 2000*1200*2100mm
Machine direction from left to right
Operation process put products on conveyer—>Block bottles—> sensor count the empty bottle—> 4 bottle come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles

Liquid And Paste Filling Machine (Note: Customized according to customer needs, you can use the frame and no frame, the corresponding price is different.)

This machine is also suitable for: Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.

Object sensor KEYENCE  (Janpan )
Cylinders Airtac or SMC (according customer requirements)
PLC Siemens
Touch Screen Siemens
Basic construction SUS304 & anodized aluminum alloy, inside support machine frame is paited steel
Material contact parts made SUS304 or SUS316 according order
