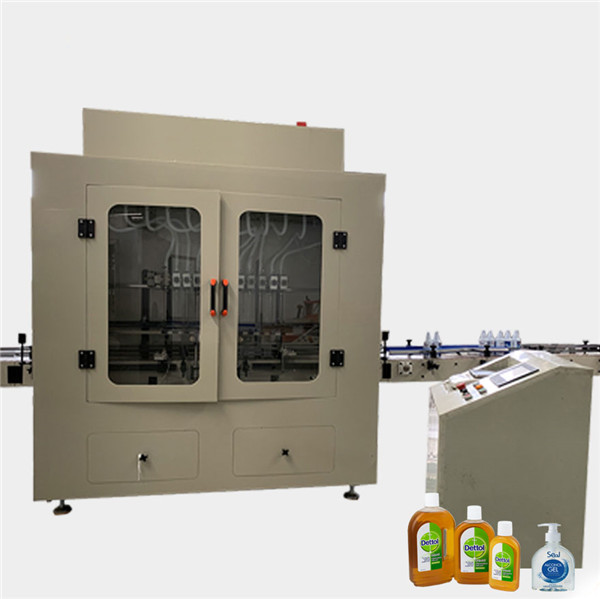

Automatic Anti Corrosive Viscosity Bottle Toilet Cleaner Liquid Filling Machine

Automatic Anti Corrosive Viscosity Bottle Toilet Cleaner Liquid Filling Machine

The equipment is mainly used for pesticide, chemical, water agent kind of liquid bottles, packaging, can be applied to a variety of different types of containers.This is a new developed quantitative filling machine, high automation, large production capacity. Stroke of the piston cylinders are controlled by PLC. The whole filling process is the perfect combination of mechanism, electricity, photics and pneumatics. The performance of this machine can reach the international advanced technology of similar products. It can form a production line with capping machine and labeling machine. This machine is a full automatic weighing filling machine. It integrates light, machine, electricity and gas. Adopt PLC control system and weighing feedback system are combined, With fixed flow path parameters, Control filling time to achieve different filling metering. The filling process is controlled by PLC program. All operations are done on the touch screen. It has the characteristics of stable and reliable operation, high production efficiency, strong regulation and high filling precision.

Key Features:

1. Suitable for all kinds of liquid, high precision;

2. PLC control system, frequency conversion adjusting speed, high degree automation.

3. No bottle, no filling, auto count the quantity. And have the anti-drop device.

4. Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.

5. Filling head is equipped with anti-dropping equipment, diving to the bottom to fill, rise slowly, to avoid bubble.

6. The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.

Main Technical parameter

Filling Speed
≤360 barrels / hour (5KG)
Filling volume
 5-30 kg
Measurement accuracy
±0.2%
Applicable bottle diameter minimum 140 × 200 × 320 mm, maximum 260 × 290 × 500 mm
User interface DN65, material inlet pressure <0.6 MPa
Filling head outer diameter  Φ40 mm
Air source pressure 0.6-0.7 MPa
Voltage 380 volts, 50 Hz
Total power  1.6 kW
Weight 1300 kg
Dimensions  3200 × 1363 × 2300 (length × width × height)

Our services:

After checking, we offer 12 months as a quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to the seller's demand, debug some failures. If you could not solve the problems, we will arrange the technician for your factory to solve the problems. The Seller supplies the on-site installation for the whole system, but the fees including air tickets, foods, hotel and translators in this period should be paid by User, the subsidy is 100USD/day.

After quality guarantee, we offer technical support and after-sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange a technician to your factory solving the problems.
