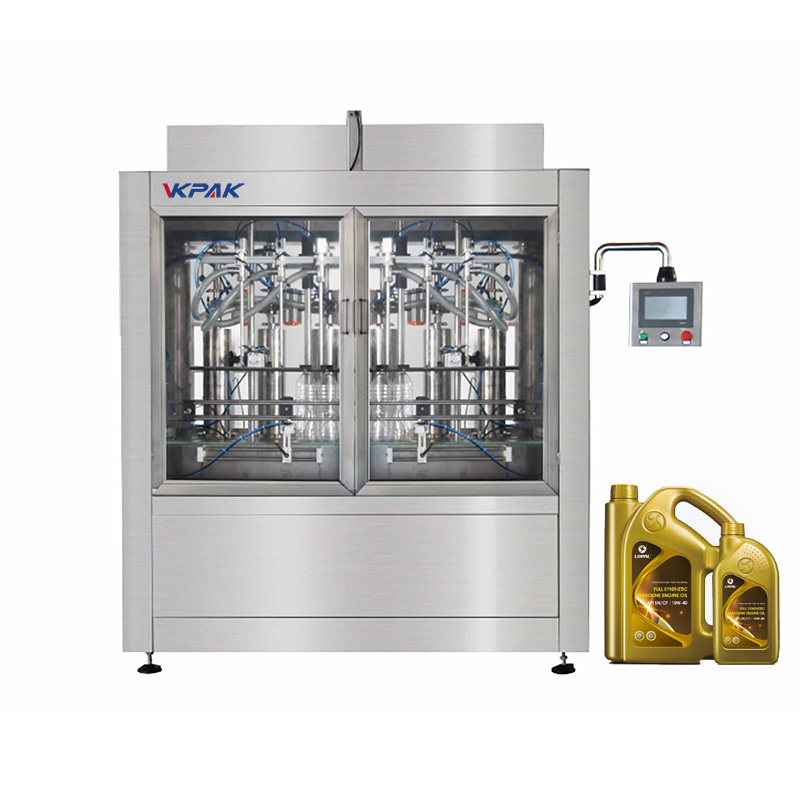

Automatic Viscous Liquid Filling Machine for Plastic Bottles

Automatic Viscous Liquid Filling Machine for Plastic Bottles

Description:

This product is one of the intelligent high-viscosity filling machines: suitable for liquid packaging suitable for a variety of properties. The whole machine adopts linear in-line design structure. The servo motor is used to drive the double ball screw to push the piston cylinder up and down and the volumetric metering filling principle. The high precision of the filling dose and the high stability of the running process are realized. It adopts PLC control and touch human-machine interface, and the whole machine is easy and intuitive to operate. Optional high-precision electronic scale automatic weighing data transmission system, dose adjustment is faster.

Automatic Viscous Liquid Filling Machine for Plastic Bottles

Key Features:

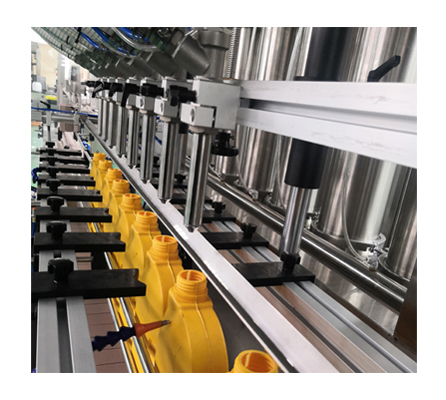

1. This machine is suitable for liquid bottle filling products, particularly for high viscosity materials (such as cosmetics, edible oil, cream, motor lubricating oil, etc.)

2. Using PLC with Siemens control system, touch screen, and human-computer interface system; automatic bottle feeding, automatic filling, automatic send bottle out; driven by a servo motor, double screw drive, control the movement of the piston rod to ensure the stability of the filling, filling precision higher.

3. Used double liquid box and is provided with a filter plate, mechanical three-way easy to clean and replace the material more convenient. It can be with the capping machine, labeling machine supporting the formation of a whole production line.

4. It integrates light, machine, electricity, and gas into one body. Is an easy to operate.

Automatic Viscous Liquid Filling Machine for Plastic Bottles

Main Technical parameter.

Molde Heads Suitable bottle Capacity(Bph) Precise Overall dimensions Total Power Air Pressure
VK-20  20 heads Suitable bottle diameter: Ф30mm-Ф250mm(can customize) <9000 (100ML) ±1% 2850mm*1150mm*2330mm  3KW 0.6-0.8 Mpa
VK-12  16 heads <6000 (100ML) ±1% 2400mm*1100mm*2100mm  3KW 0.6-0.8 Mpa
VK-8  12 heads <4000 (100ML) ±1% 2200mm*1000mm*2200mm  2.5KW 0.6-0.8 Mpa

Machine Main Parts

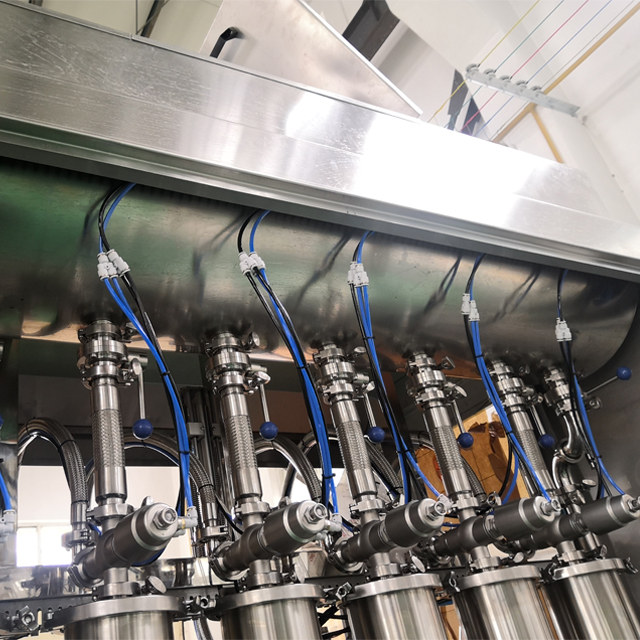

Filling Nozzles (SUS316L)
Using PLC with a Siemens control system, touch screen, and human-computer interface system as well famous brand components.

About Packing:

To ensure our service quality, we will execute the following packaging standards in delivery:

1. All the products before delivery should be tested by assembling and debugging engineers wiped up and then wrapped by stretch film to protect it from moisture. The precision part needs to flexible package.

2. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheets, the machine cannot leave the factory All the products will be packed in wooden cases. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
