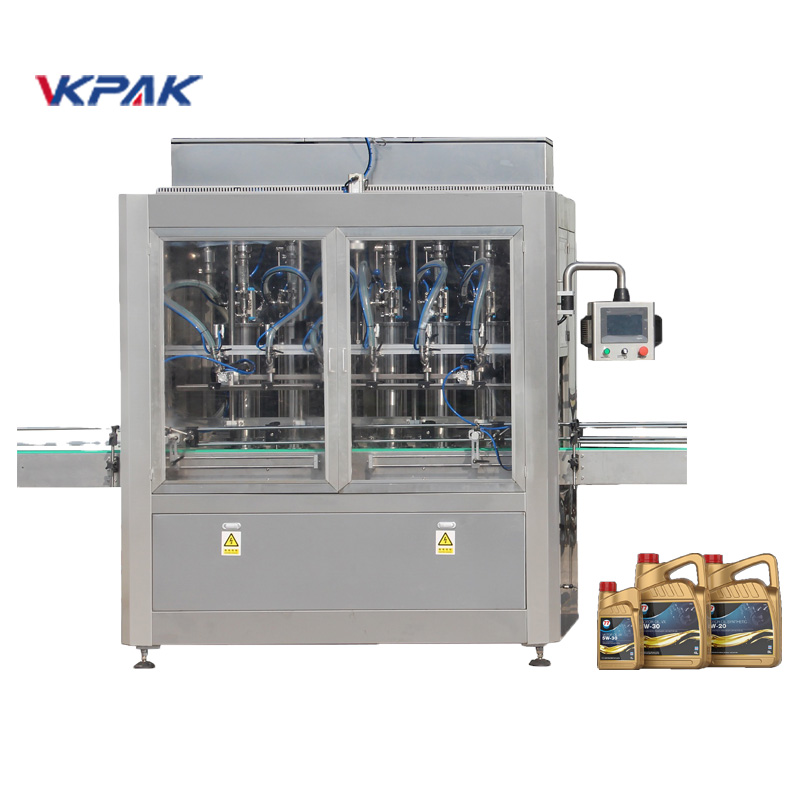

Automatic Linear Lubricating Oil Filling Machine

Automatic Linear Lubricating Oil Filling Machine

This Lubricating Oil Filling Machine is volumetric filling machine which is suitable for filling varies viscosity fluid. The machine is made by in-line structure , filling head quantity can be custom-made according to request like 6/8/10/12/16 heads.

Brief Introduction:

This Lubricating Oil Filling Machine is volumetric filling machine which is suitable for filling varies viscosity fluid. The machine is made by in-line structure , filling head quantity can be custom-made according to request like 6/8/10/12/16 heads.
The filling system is driven by servo motor which assure high filling accuracy. It is controlled by the PLC, human interface and easy operation.

It is widely used in the cosmetic, foodstuff, specialty chemical, pharmaceutical, and personal care industries.

Piston Filling Machine Details

Features:

  • Made by high quality 304 Stainless steel, it is durable
  • No bottle no fill.
  • Can control different filling speed on one dose.
  • Filling system is controlled by servo motor, it assure high filling accuracy.
  • Diving filling head is available according to different product(For option).
  • Air blow off filling nozzle is available for sticky product to avoid tail stringing on nozzle.
  • Product receive tray is available in case any leakage from filling nozzle(For option).
  • Can save up to 20 groups parameter on the PLC, convenient for operation.
  • No tooling needed to change over different size bottles.
  • Quick-install connecting parts , it is easy to disassemble and clear machine.

Main Parameter:

Model Unit SFO
Nozzle Number PCS 8 12 16 20
Filling volume Ml 20-5000
Production capacity Bottle/h 720-3000 1200-3600 1800-4800 2000-6000
Quantitative error % 20-1000ml:≤±2% , 1000-5000ml:≤±1%
Source voltage V Three-phase four-wire system AC220V 380V ±10%
Consumed power KW 2 2.5 3 5
Gas supply pressure MPA 0.4-0.6
Air consumption M3/min 0.8 1 1.2 1.2

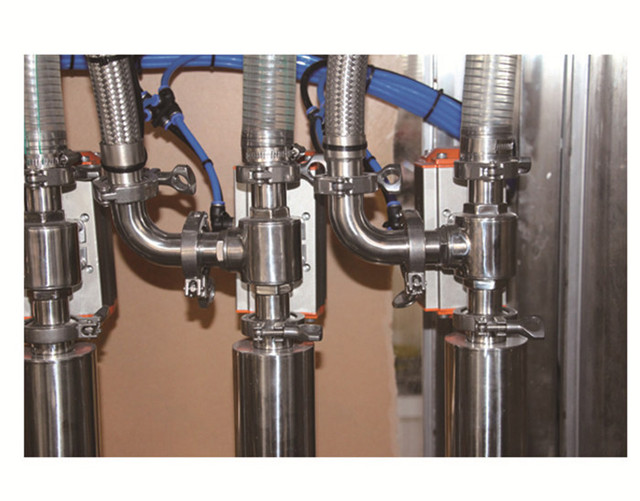

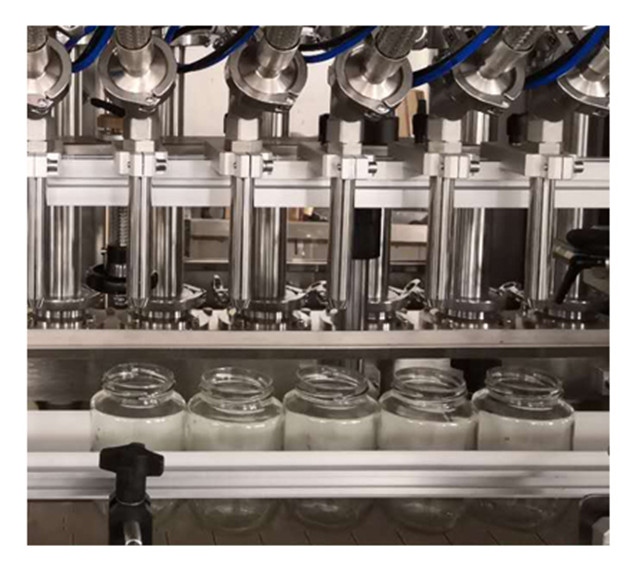

Piston Filling Machine Details

Oils and lubricants can range in viscosity from very low to very high, which in turn means the packaging machinery used for the multitude of items in this industry will vary widely as well. For example, when filling an oil or lubricant, an overflow filling machine might be used for products in clear containers that require a consistent, level fill. On the other hand, a pump or piston filling machine may be used for thicker, more viscous oils and lubricants. VKPAK will manufacture the ideal packaging equipment for your oil or lubricant.

This typical oil and lubricant packaging system will not be ideal for every application. As noted above, the overflow filler may be replaced by a piston or pump filler for filling thicker liquids. A gravity filler may also be used for time based filling applications. Packaging systems for oils and lubricants can be manufactured as fully automated systems for high production rates or as manual or tabletop packaging systems for start up companies or special product runs.

Additional equipment can always be added to an oil and lubricant packaging system. This additional equipment may include an unscramber for added automation, an automatic labeler for quick application of the product label or even a box erecting machine to create cartons for packing the product. Each complete oil and lubricant packaging system can be tailored to the individual needs of each customer and product.
