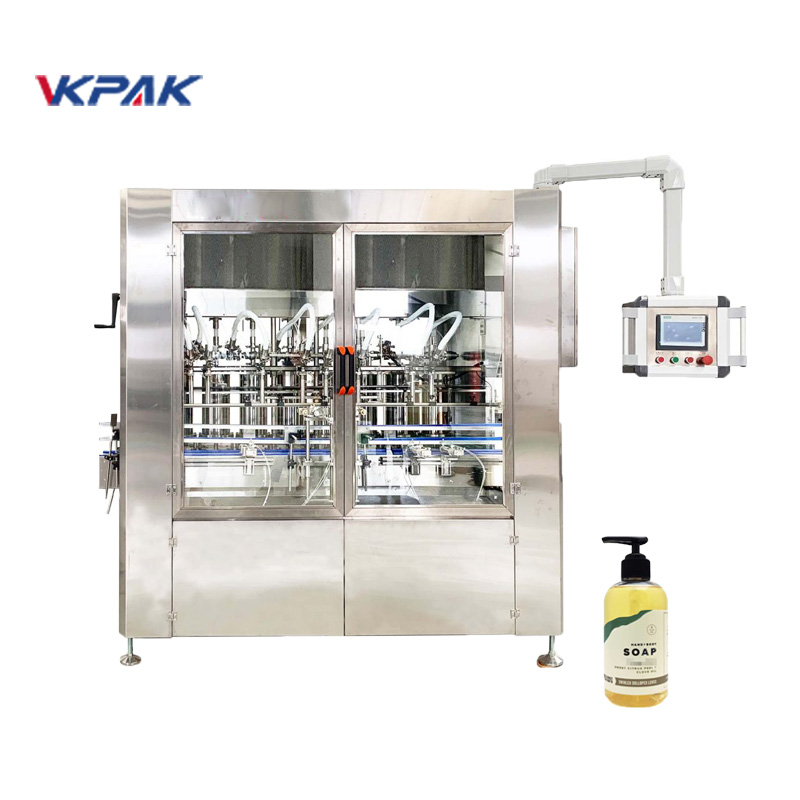

Automatic Linear Servo Driven Liquid Soap Filling Machine

Automatic Linear Servo Driven Liquid Soap Filling Machine

This Automatic Linear Servo Driven Liquid Soap Filling Machine is volumetric filling machine which is suitable for filling varies viscosity fluid. The machine is made by in-line structure , filling head quantity can be custom-made according to request like 6/8/10/12/16 heads.

Brief Introduction:

For some of the best liquid soap & hand sanitizer filling machines available in the industry, choose VKPAK Machinery for all of your liquid packaging needs. We offer a selection of liquid fillers along with cappers, conveyors and labelers to form a complete production line that brings increased efficiency and quality to your facility. Soaps & sanitizers are just a few of the many different types of liquids our equipment is designed to fill.

This Automatic Linear Servo Driven Liquid Soap Filling Machine is volumetric filling machine which is suitable for filling varies viscosity fluid. The machine is made by in-line structure , filling head quantity can be custom-made according to request like 6/8/10/12/16 heads.

The filling system is driven by servo motor which assure high filling accuracy. It is controlled by the PLC, human interface and easy operation.

It is widely used in the cosmetic, foodstuff, specialty chemical, pharmaceutical, and personal care industries.

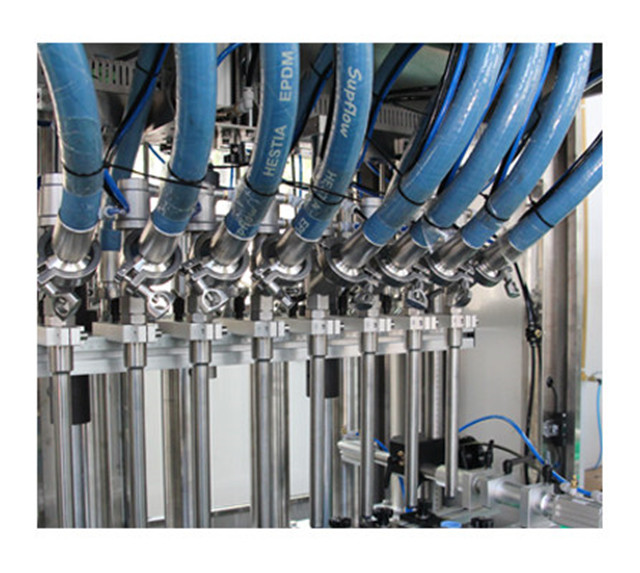

Piston Filling Machine Details

Features:

  • Made by high quality 304 Stainless steel, it is durable
  • No bottle no fill.
  • Can control different filling speed on one dose.
  • Filling system is controlled by servo motor, it assure high filling accuracy.
  • Diving filling head is available according to different product(For option).
  • Air blow off filling nozzle is available for sticky product to avoid tail stringing on nozzle.
  • Product receive tray is available in case any leakage from filling nozzle(For option).
  • Can save up to 20 groups parameter on the PLC, convenient for operation.
  • No tooling needed to change over different size bottles.
  • Quick-install connecting parts , it is easy to disassemble and clear machine.

Main Parameter:

Model Unit SFM
Nozzle Number PCS 8 12 16 20
Filling volume Ml 20-5000
Production capacity Bottle/h 720-3000 1200-3600 1800-4800 2000-6000
Quantitative error % 20-1000ml:≤±2% , 1000-5000ml:≤±1%
Source voltage V Three-phase four-wire system AC220V 380V ±10%
Consumed power KW 2 2.5 3 5
Gas supply pressure MPA 0.4-0.6
Air consumption M3/min 0.8 1 1.2 1.2
