Sanitiser Gel Servo-Motor Piston Filler

Sanitiser Gel Servo-Motor Piston Filler

VKPAK Automatic Linear Sanitiser Gel Servo-motor Piston Filler are suitable for a wide variety of products from water-thin to thick but flowable products.

Brief Introduction:

VKPACK Automatic Linear Sanitiser Gel Servo-motor Piston Filler are suitable for a wide variety of products from water-thin to thick but flowable products. The machine is made by in-line structure , filling head quantity can be custom-made according to request like 6/8/10/12/16 heads.

The filling system is driven by servo motor which assure high filling accuracy. It is controlled by the PLC, human interface and easy operation.

It is widely used in the cosmetic, foodstuff, specialty chemical, pharmaceutical, and personal care industries.

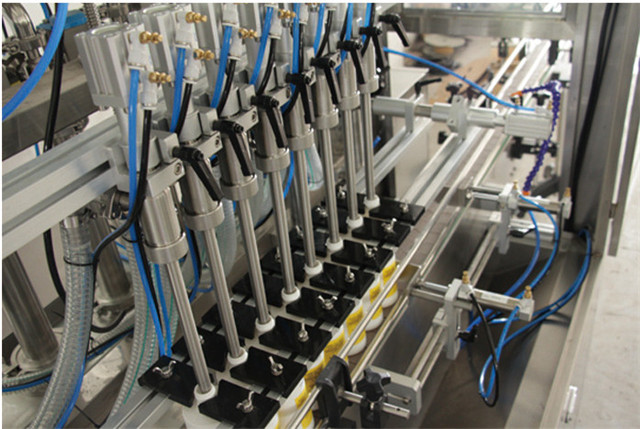

Piston Filling Machine Details

Features:

  • Made by high quality 304 Stainless steel, it is durable
  • No bottle no fill.
  • Can control different filling speed on one dose.
  • Filling system is controlled by servo motor, it assure high filling accuracy.
  • Diving filling head is available according to different product(For option).
  • Air blow off filling nozzle is available for sticky product to avoid tail stringing on nozzle.
  • Product receive tray is available in case any leakage from filling nozzle(For option).
  • Can save up to 20 groups parameter on the PLC, convenient for operation.
  • No tooling needed to change over different size bottles.
  • Quick-install connecting parts , it is easy to disassemble and clear machine.

Main Parameter:

Model Unit SFM
Nozzle Number PCS 4 6 8 12
Filling volume Ml 20-5000
Production capacity Bottle/h 720-2000 1200-3000 1800-4000 2000-5000
Quantitative error % 20-1000ml:≤±2% , 1000-5000ml:≤±1%
Source voltage V Three-phase four-wire system AC220V 380V ±10%
Consumed power KW 2 2.5 3 5
Gas supply pressure MPA 0.4-0.6
Air consumption M3/min 0.8 1 1.2 1.2

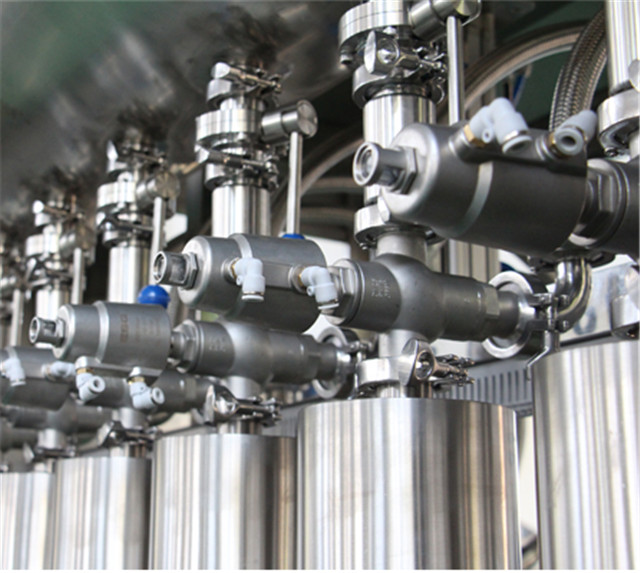

Piston Filling Machine Details

Servo Fillers / Depositors combine innovative features to deliver the fastest speeds with the best fill accuracy and lowest level of product degradation. Achieve complete control along with ease-of-use with simple touchscreen HMI operation. Our industry leading Servo fillers / depositors are constructed using 316L stainless steel and top-quality USDA approved materials.

Available in single or multiple head designs, the Servo Fillers / Depositors are ideal for manual or automatic operation. Pair this machine with a load cell to achieve the most accurate fill weights possible with automatic fill weight adjustment. Servo Fillers / Depositors integrate seamlessly with auxiliary packaging equipment such as vertical form fill and seal, horizontal form fill and seal, thermoform machines, bottling lines, and cup machines to form a complete packaging system.

Equip our piston fillers / depositors with our industry leading dispensing nozzles for the perfect solution to your application’s needs. With over 100 standard and custom dispensing nozzles, we will have the best solution for your operation. Contact us today to discuss your filling / depositing application to ensure you’re perfectly equipped now and into the future.
