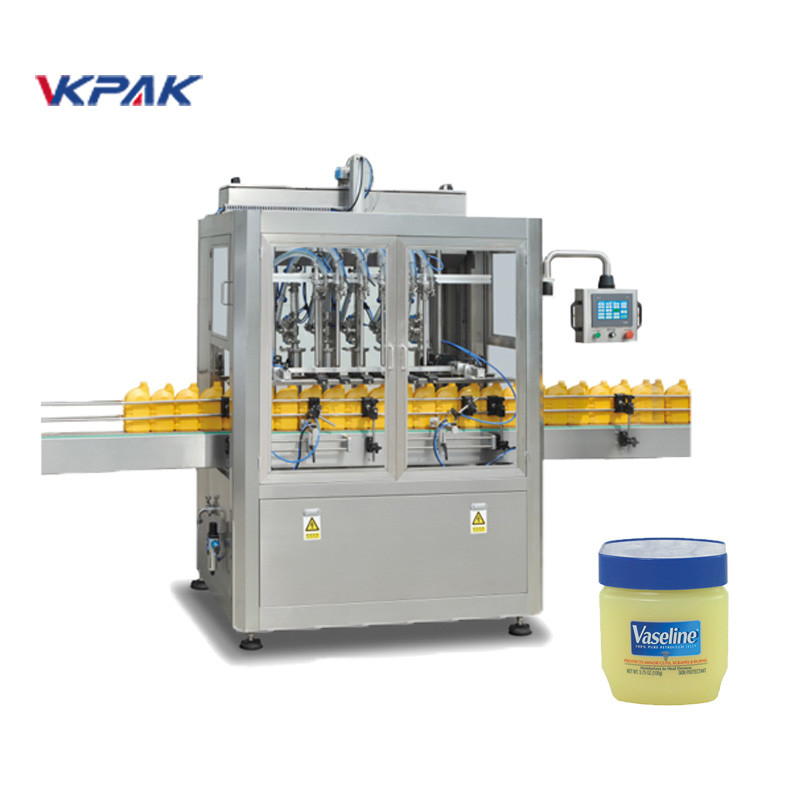

Automatic Vaseline Filling And Cooling Line

Automatic Vaseline Filling And Cooling Line

This hot filling machine is special made for filling product like wax, vaseline etc which need heating up before filling.

This automatic heating filling machine was developed by our team import foreign advanced technology on the base of hot heating production market requirement. The whole machine is made of stainless steel 304. Designed with various heads and specification accordance to customer's demands. It is wildly used for chemical, pharmaceutical, food, cosmetic and other industries production.

Brief Introduction:

This hot filling machine is special made for filling product like wax, vaseline etc which need heating up before filling.
Piston type , filling system is driven by servo motor which is accurate on the filling volume and convenient of filling volume setting.

The whole filling system: product hopper, dosing system, filling nozzle all are heatable for maintain product temperature.

And product contact parts of the machine is made up of 304 stainless steel( 316 stainless steel is available for optional)

Can connect with cooling tunnel after filling to cool down the product in the bottle immediately.

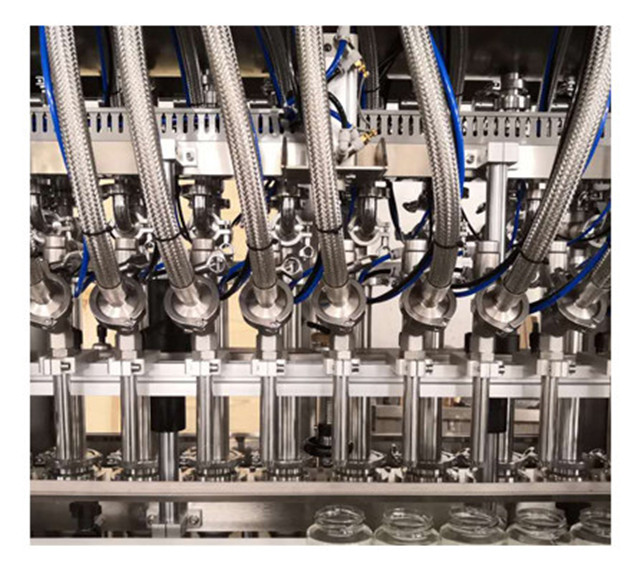

Piston Filling Machine Details

Features:

  • Made by high quality 304 Stainless steel, it is durable.
  • 316 stainless steel product contact parts is available for optional according to product features.
  • Dosing system is driven by servo motor, it assure high filling accuracy.
  • Whole filing system is heatable
  • No bottle no fill.
  • Controlled by PLC and operation through touch screen.
  • Easy change over of different size bottles.
  • Quick-install connecting parts , it is easy to disassemble and clear machine.

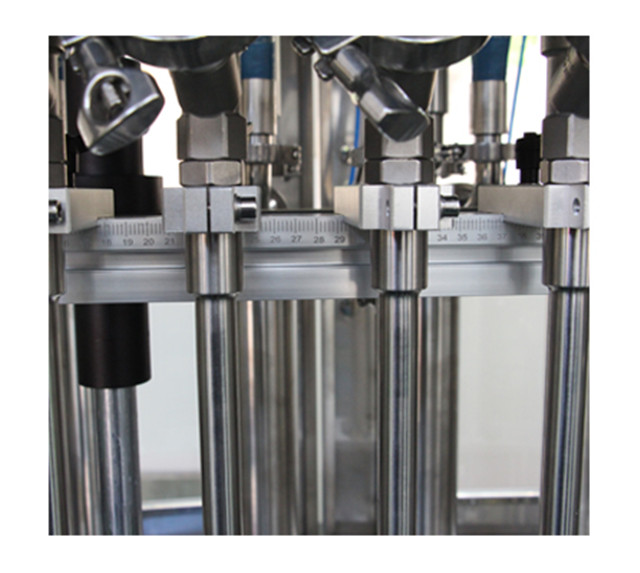

Piston Filling Machine Details

Main Parameter:

Model Unit VK
Nozzle Number PCS 2 4 6 8
Filling volume Ml 20-250ml /50-500ml
Production capacity Bottle/h 1000-2000 pcs/Hour ( Depends on Filling volume)
Quantitative error % ≤±1%
Voltage V 380V/220V, 50Hz/60Hz
Power KW 2.5 3.5 4.5 5.5

Process steps:

Manual pour empty bottles into bottle unscrambling machine -- > sorts bottle -- > hot filling -- > nature cooling ( or industrial refrigerator cooling ) --> aluminum foil sealing -- > capping machine ( or crimping cap ) -- > ink-jet printer -- > finish

Introduction:

This Vaseline production line is our unique developed patent base on foreign and mainland technology with our years experience, for high efficient produce jar, can container was, vaseline, petroleum jelly and others products.
