Automatic Disinfectant Piston Filling Machine

Automatic Disinfectant Piston Filling Machine

VKPAK can rapidly supply liquid fillers to the disinfectant packaging industry.

Hand sanitizer is moderately thicker than water making it ideally suited for piston fillers. The VKPAK series fillers can fill up to twelve containers at a time. Switching from filling two, eight or sixteen ounce containers can be done in minutes without tools.

Piston Filling Machine Details

Brief Introduction:

VKPAK's Automatic Disinfectant Piston Filling Machine are best suited for filling very viscous products and products with large particulates. Our Automatic Disinfectant Piston Filling Machine can be used to fill thin products as well. These fillers are ideal for filling pastes, creams, lotions, gels, and products that have large particulates or chunks. Some example products our piston filling machinery can fill are: heavy sauces, salsas, salad dressings, pasta sauses, peanut butter with or without particulates, nuts, jellies and jams, tooth paste, honey, wax, cosmetic creams, heavy shampoo, hair gels and conditioners, and paste cleaners. Cleaning is a simple process, no tools are required. All of our piston filling machines are based on heavy-duty stainless steel frames with all contact parts made of food grade materials.

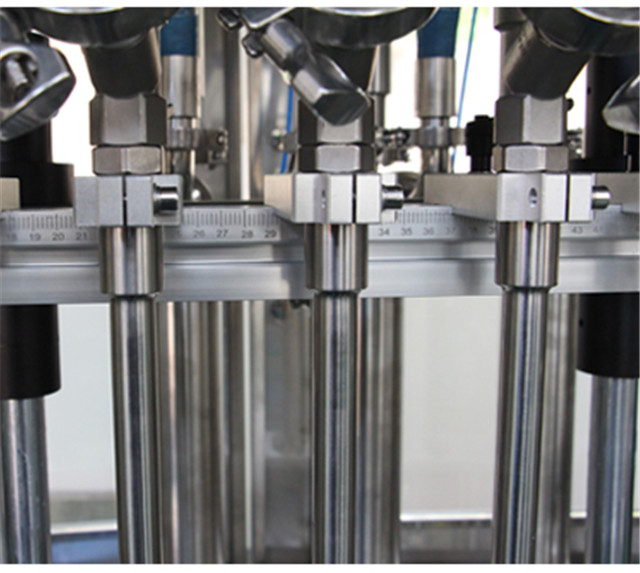

Piston Filling Machine Details

The Automatic Automatic Disinfectant Piston Filling Machine is an ideal solution for filling liquids, semi-solids and products with particulates, and will almost always be the machine of choice for high viscosity products. The automatic piston filling machine features a large product hopper and the piston size will be matched to the container or project at hand. Given that the piston and cylinder do not change in size from cycle to cycle, these machines provide a highly accurate volumetric fill.

Features:

  • Heavy Duty Portable Stainless Steel Frame
  • Siemens S7-1200 and HMI KTP-700 PLC with touchscreen operator control system
  • Power Height Adjustment
  • Up To 24 Cylinders/Fill Heads
  • Product Supply Hopper
  • Various Piston Sizes
  • Upgradeable
  • Missing Bottle and Anti-Bottle Backup Vision Systems
  • Tool Free Adjustments

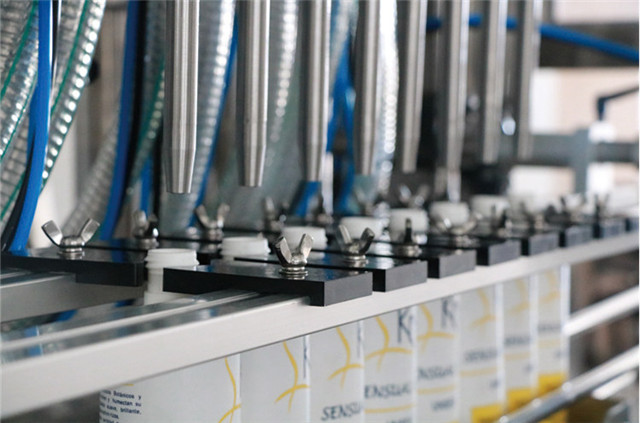

Piston Filling Machine Details

Main Parameter:

Nozzle Number PCS 6 8 10 12
Filling volume Ml 100-1000ml/ 250-2500ml/500-5000ml
Production capacity Bottle/h 1000-3000 pcs/Hour ( Depends on Filling volume)
Quantitative error % ≤±1%
Voltage V 380V/220V, 50Hz/60Hz
Power KW 2.5 2.5 2.5 2.5
Air Pressure MPA 0.6-0.8
Air consumption M3/min 0.8 1 1.2 1.2
